MP-402 FU25 1625 Tube Amplifier

MP-402 FU25 1625 Tube Amplifier
Product Code: MP-402
Availability: Out Of Stock
Price: $1,050.00 USD

Available Options


Addon Deals:

* Shipping:

Qty:
   - OR -

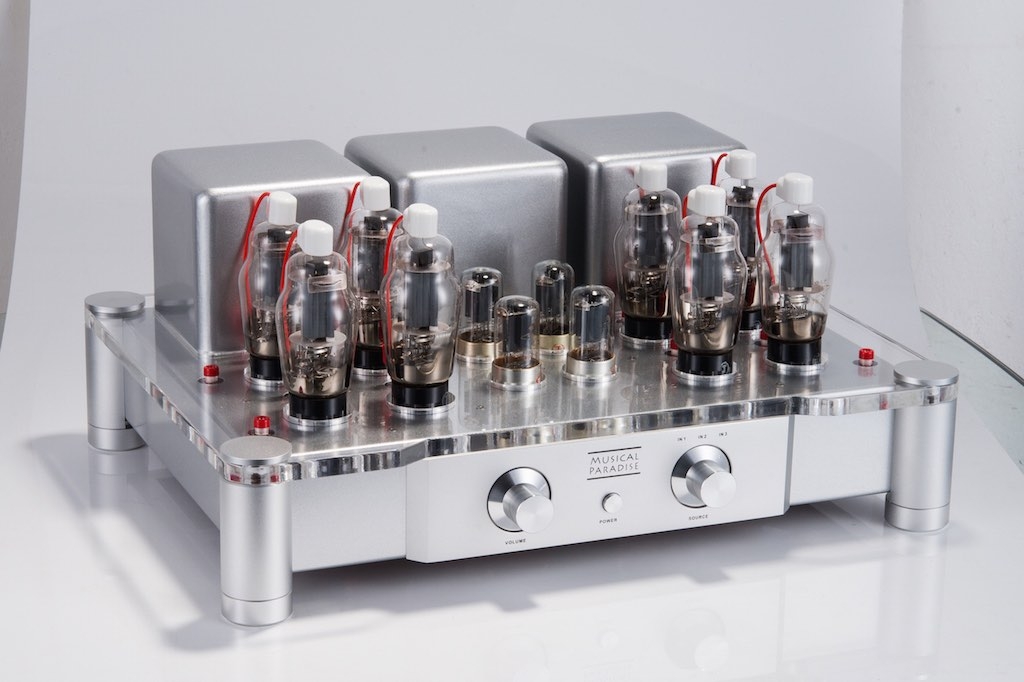

MP-402 is our first push pull tube amplifier employing eight legendary 1625 power tubes. It can produce 75W per channel into 8Ω and 4Ω. It sounds quite dynamic with excellent sonic details. The bass and transient response are transcendent.

Features:

  • Auto biasing design that eliminates manual adjustment.
  • Parallel push pull; Zero negative feedback.
  • Built with high grade genuine components.
    (US Military Vishay Dale resistors. RIFA 450, Rubycon, Philips BC and Nichicon capacitors.)
  • 24K gold plated input and output terminals.
  • Transformers are specially made with oxygen free copper wire and Japanese Z11/M6 silicon core.
  • 2 oz. thick copper PCB.
  • High output power


Specifications:



Model

MP-402

Tubes (Default)

FU25(1625) x 8, 6N8P(6SN7) x 2, 6N7 x 2

Tubes (Optional)



Topology

Parallel Push Pull

Output Power (RMS)

75W x 2

Output impedance

4Ω - 8Ω

Frequency Response

15Hz - 30Khz

T.H.D

<=1% (1Khz)

S.N.R

88db

AC Input

100-120V / 220-240V 50-60Hz Worldwide Use

Weight

29KG

Dimension

(W 43CM x L 35CM x H 20CM)

Warranty

1 Year Limited (One month for tubes)



Tube Replacement Guide:



Center Front

6N8P, 6H8P, 6SN7

Center Back

6N7

Both Sides

FU25, 1625
